1. Overview:

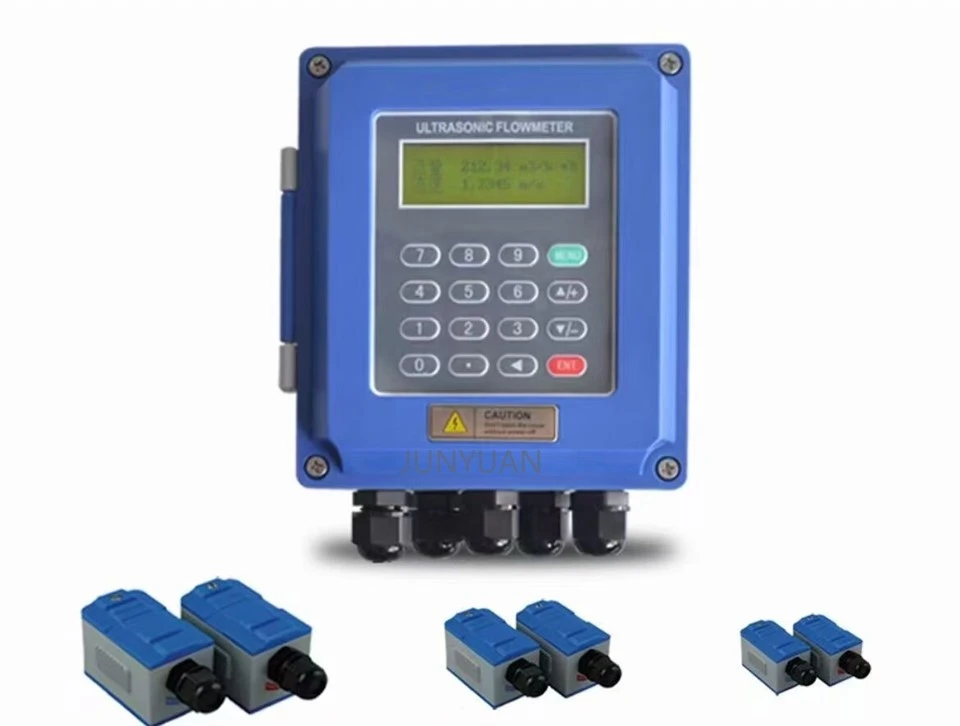

The clamp on ultrasonic water flow meter features simple installation, requiring no cutting or disruption of the pipeline; it can be mounted directly onto the outer wall of the pipe to measure the instantaneous and volumetric flow rates of the liquid. When configured with an external clamp-on temperature sensor, it can simultaneously measure the liquid's flow rate, temperature, or thermal energy within the pipe.
2. How to Correctly Configure Clamp-on Ultrasonic Sensors:
The clamp on sensors for ultrasonic flow meters are selected based on the diameter of the measurement pipe, the temperature of the medium, and whether there is a requirement to measure temperature or thermal energy. This ensures the configuration of the most suitable sensor type. Note that the sensor connection methods used for portable clamp on ultrasonic water flow meter differ from those used for fixed (permanently installed) units.
TS-2 Sensor
TM-1 Sensor
TL-1 Sensor
TM-1-HT High-Temperature Sensor
TM-1-HT High-Temperature Sensor
TL-1-HT High-Temperature Sensor
Bracket-Mounted Sensor
CT-1 Temperature/Heat Sensor
※ TS-2 Sensor: Suitable for pipe diameters DN15–DN100; Medium temperature range: -30°C to 90°C.
※ TM-1 Sensor: Suitable for pipe diameters DN50–DN700; Medium temperature range: -30°C to 90°C.
※ TL-1 Sensor: Suitable for pipe diameters DN300 and above; Medium temperature range: -30°C to 90°C.
※ TS-2-HT (High-Temperature) Sensor: Suitable for pipe diameters DN15–DN100; Medium temperature range: -30°C to 160°C.
※ TM-1-HT (High-Temperature) Sensor: Suitable for pipe diameters DN50–DN700; Medium temperature range: -30°C to 160°C.
※ TL-1-HT (High-Temperature) Sensor: Suitable for pipe diameters DN300 and above; Medium temperature range: -30°C to 160°C.
※ JUMO Temperature Sensor: Suitable for pipe diameters DN15–DN50 and above; Medium temperature range: -30°C to 160°C.
※ CT-1 Temperature Sensor: Suitable for pipe diameters DN50 and above; Medium temperature range: -30°C to 160°C.
(Note: Ultrasonic flow meters can also be configured with insertion flow sensors and in-line flow sensors.)
3. Fixed Ultrasonic Flowmeter Specifications and Attributes:
※ Accuracy: 1%<br />
※ Repeatability: better than 0.2%<br />
※ Power supply: DC8-36V, AC85-265V<br />
※ Working current: 50Ma<br />
※ Display: LCD backlit display<br />
※ Suitable pipe diameter range: DN15-DN3000<br />
※ Output: RS485 communication, 4-20MA output, pulse output<br />
4. Portable clamp on ultrasonic water flow meter Specifications and Attributes:
※ Accuracy: ±1%<br />
※ Applicable Medium Temperature: -30°C to 160°C<br />
※ Power Supply: Built-in 3 × 1.2V rechargeable Ni-MH batteries (total capacity: 2000mAh); 90VAC–260VAC power adapter included<br />
※ Applicable Pipe Materials: Steel, cast iron, copper, PVC, aluminum, fiberglass, and other pipe materials<br />
※ Display: Backlit LCD<br />
※ Supported Languages: Chinese, English, Italian<br />
※ Applicable Pipe Diameter Range: DN25–DN3000<br />
※ 2000H Outputs: RS232 communication; 1-channel OCT pulse output (pulse width: 6–1000ms; default: 200ms)<br />
※ TUF2000P Outputs: Printing function; equipped with storage card; RS485 output; pulse output; 4–20mA output
5. Clamp-on Installation Video：
6. RFQ:
Q1. Are you a manufacturer or a trading company?
A1: We are a manufacturer. Our factory is located in Kaifeng, China, and has been in operation since 2002. We primarily manufacture and sell a wide range of industrial flow meters and related products. You are welcome to visit us!
Q2. What products and services can you provide?
A2: We offer comprehensive, one-stop services for flow measurement solutions. Our product range includes the sale of various industrial flow meters, industrial ultrasonic water meters, differential pressure transmitters, pressure transmitters, and other instrumentation.
Q3. What are your packaging terms?
A3: Generally, we select the most suitable and secure packaging based on the product's weight and the chosen shipping method. For equipment involving small pipe diameters-which tends to be lighter-especially when shipped via express courier, we utilize carton packaging with internal foam padding. For equipment with large pipe diameters-particularly when shipped via sea freight-we opt for wooden crate packaging.
Q4. What is your delivery lead time?
A4: We maintain a substantial inventory of raw materials and standard-configuration equipment. For standard models-specifically orders of 50 units or fewer-the estimated time required for production and calibration after order confirmation is 2 business days. For non-standard models, production times vary depending on the specific quantity and specifications; typically, this requires 5 business days. For more specific details, please consult with our sales representatives.
Q5. What is your Minimum Order Quantity (MOQ)?
A5: Our minimum order quantity is 1 unit.
Q6. How do you ensure high product quality?
A6: We have established a comprehensive quality control system. Prior to shipment to our customers, all our products undergo thorough inspection by our IQC (Incoming Quality Control) and OQC (Outgoing Quality Control) departments.
