1. Introduction:
Ultrasonic pipe flow meter uses the principle of velocity difference method to measure the instantaneous and cumulative flow of liquid in the pipeline. It adopts advanced micro-power digital design technology, such as: digital transmission, digital reception, digital analysis, and digital output. The meter has high measurement accuracy and reliable operation and is very suitable for application needs in industrial sites. The converter forms are: wall-mounted, panel-mounted, and integrated. The sensor forms are: plug-in, pipe segment, and external clamp.
|
|
|
★The sensor materials of the pipe segment ultrasonic flow meter are: carbon steel, SS304, SS316,
Pipe diameters DN15-DN32mm require π-type pipe sections, and DN40-DN1000 requires standard pipe sections.
★ The media that the pipeline section ultrasonic flowmeter can measure are: water, seawater, sewage, alcohol, beer, and various single and uniform liquids.
2. Basic parameters:
| Accuracy | ±1% |
| Flow rate range | 0-±10m/s |
| Pipeline diameter | DN15-DN6000mm |
| Fluid temperature | -30℃-160℃ |
| Pipeline material | Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes are allowed to have linings. |
| Signal output | 1 4-20mA output; 1 OCT pulse output; 1 relay output |
| Signal input | 3-way 4-20mA output; can be used as a data collector, connected to a three-wire PT100 platinum resistor to achieve heat measurement |
| Communication interface | Modbus protocol |
| Power supply method | DC8V-36V or AC85V-264V |
3. Pipe segment sensor:

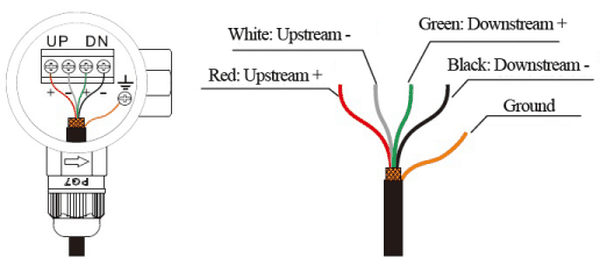

The sensor and wiring of the ultrasonic pipe flow meter are shown below：
|
|
|
|
4. Factory product pictures：
|
|
|
|
|
|
5. RFQ:
Q1. Are you a factory?
A1: We were founded in 2002 in Kaifeng, China. We mainly produce and sell various industrial flow meters and other products. Welcome!
Q2. What are the products you mainly sell?
A2: We can provide a one-stop flow meter service and sell various flow meters, pressure transmitters, differential pressure transmitters, liquid level meters, and other instruments.
Q3. How is your delivery time?
A3: If it is standard type: 100PCS or less, we can ship at any time after receiving payment. Special customized type: After receiving payment, our production time is expected to be 5-10 working days for less than 100PCS.
Q4. What is your minimum order quantity?
A4: Our minimum order quantity requires 1PCS,
Q5. How do you ensure good product quality?
A5: We have a complete quality control system; IQC and OQC departments fully inspect all our products before shipping them to customers.
Q6. How long is your quotation valid?
A6: Our normal quotation is valid for 1 month. If there are special circumstances, please contact our sales representative.
Q7. Can you accept OEM brands?
A7: Yes, we can accept OEM brands without additional charges.
Q8. How long is your product warranty period?
A8: We have a 2-year warranty, because we are a factory, if the product has quality problems, we can provide a new meter of the same model for free.
Q9. Can you produce according to the samples?
A9: Yes, we can produce according to your samples or technical drawings
