1. Features:
The TUF2000M main unit is equipped with a clamp-on sensor, making it easy to install. This is especially useful for measuring flow in older or functioning pipelines. Clamp-on ultrasonic flowmeters are the preferred choice because they don't require cutting or damaging the pipe during installation. The sensor has an IP68 rating, and the main unit supports 4-20mA pulse, MODBUS, and other functions, allowing for seamless integration with control systems.
The TUF2000M ultrasonic flowmeter can be configured with clamp-on, plug-in, and in-line sensors.
|
|
|
|
|
|
2.TUF2000M flowmeter Module type host wiring diagram：

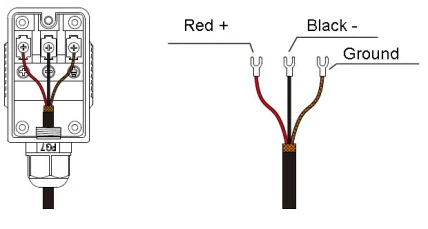

3. Transducer Introduction and Wiring Diagram：
4. External Clamp Sensor Selection Table：
|
Clamp-on Type |
Model |
Accuracy |
Protection Class |
Measuring Pipe Size |
Medium Temperature |
|
Standrad |
TS-2 |
±1% |
IP68 |
DN25-DN100mm |
-30℃-90℃ |
|
TM-1 |
DN50-DN700mm |
-30℃-90℃ |
|||
|
TL-1 |
DN300-DN3000mm |
-30℃-90℃ |
|||
|
High Temperature Standard |
TS-2-HT |
DN25-DN100mm |
-30℃-160℃ |
||
|
TM-1-HT |
DN50-DN700mm |
-30℃-160℃ |
|||
|
TL-1-HT |
DN300-DN3000mm |
-30℃-160℃ |
|||
|
Mounting Bracket |
HS |
DN25-DN100mm |
-30℃-90℃ |
||
|
HM |
DN50-DN300mm |
-30℃-90℃ |
|||
|
EB-1 |
DN300-DN700mm |
-30℃-90℃ |
|||
|
High Temperature Mounting Bracket |
HS-HT |
DN25-DN100mm |
-30℃-160℃ |
||
|
HM-HT |
DN50-DN300mm |
-30℃-160℃ |
|||
|
EB-1-HT |
DN300-DN700mm |
-30℃-160℃ |
|||
|
Ultra high temperature sensor |
HS-SHT |
DN25-DN100mm |
-30℃-260℃ |
||
|
HM-SHT |
DN50-DN700mm |
-30℃-260℃ |
5. Installation of Ultrasonic Flow Meter：
The correct installation point is the key to sensor installation. The following factors must be considered: full pipe, vibration, steady flow, dirt, temperature, pressure, electromagnetic interference, and instrument well. Ensure that the pipe is full of liquid when measuring:
Vertical upward Obliquely upward, Lowest point
Steady flow
Steady flow is helpful for ensuring measurement accuracy.
Standard requests for steady flow are:
The pipe should be far away from the pump outlet and the half-open valve.
10D to upstream and 50D to downstream. (D means outer diameter)
30D to the pump outlet and a half-open valve.
6. Advantage:
The purchase cost of the TUF2000M ultrasonic flowmeter is low, the installation is convenient and simple, easy to maintain, no need to damage the pipeline, and the use cost is low.
It is also a non-contact instrument, which can measure the medium flow of large pipe diameters as well as the medium that is not easy to touch and observe. Its measurement accuracy is very high, and the highest accuracy of ±0.5% can be achieved by the external clamping installation. Flow measurement of radioactive and flammable, and explosive media.
7. FAQ:
1. Q: How about the stability and accuracy of TUF2000M?
A: The stability of this flowmeter is very good, and the accuracy is 1%.
2. Question: How to choose the sensor to match the pipeline?
A: You can contact our sales representative and tell them your pipe diameter, and we will help you choose the most suitable sensor.
3. Q: Can we purchase samples first? What is the MOQ?
A: Of course, we have stock in stock and can help you get samples as soon as possible. MOQ is 1PCS
4. Q: How about the quality assurance?
A: Our warranty is 18 months. If there is any quality problem, we can provide you with a new product for free.
5. Q: What are the payment methods?
A: We support: TT payment, credit card online payment, Western Union payment, and LC payment.
If you have more questions, please contact us. We will have professional sales representatives and engineers to answer all your questions!!
