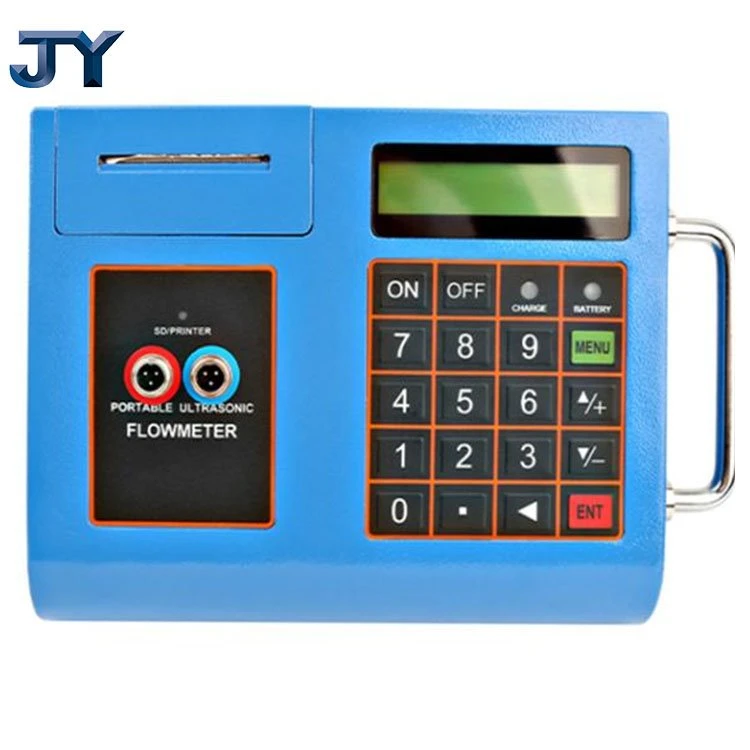

Portable Ultrasonic Flow Meter

Main unit

2 line x 20 character LCD with backlight
Working temperature: -25--60℃
Mini thermal printer with 24 line character output
4x4+2 pushbutton keypad
RS-485 interface for networking

Signal input  & output

1 channel 4-20mA output
1channel OCT output
1channel relay output
3 channel 4-20mA input

Medium

Water(hot water, chilled water, city water,sea water, waste water, etc.);
Sewage with small particle content;
Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);
Chemicals (alcohol, acids, etc.);
Plant effluent; Beverage,  liquid food; Ultra-pure liquids; Solvents and other liquids

Flow rate Range

0~±10m/s

Accuracy

Better than ±1%

Battery

Built-in rechargeable Ni-MH rechargeable battery,provide over 20 hours of continuous operation

Power Consumption

1.5W

Power supply

Built-in rechargeable Ni-MH battery  (for 20 hours operation) or AC 220V

Weight & Dimensions

2.5kg ;  225*180*67mm:

Remarks

With a high strength carrying case suitable  for normal and harsh environment
