1. Advantages and Features：

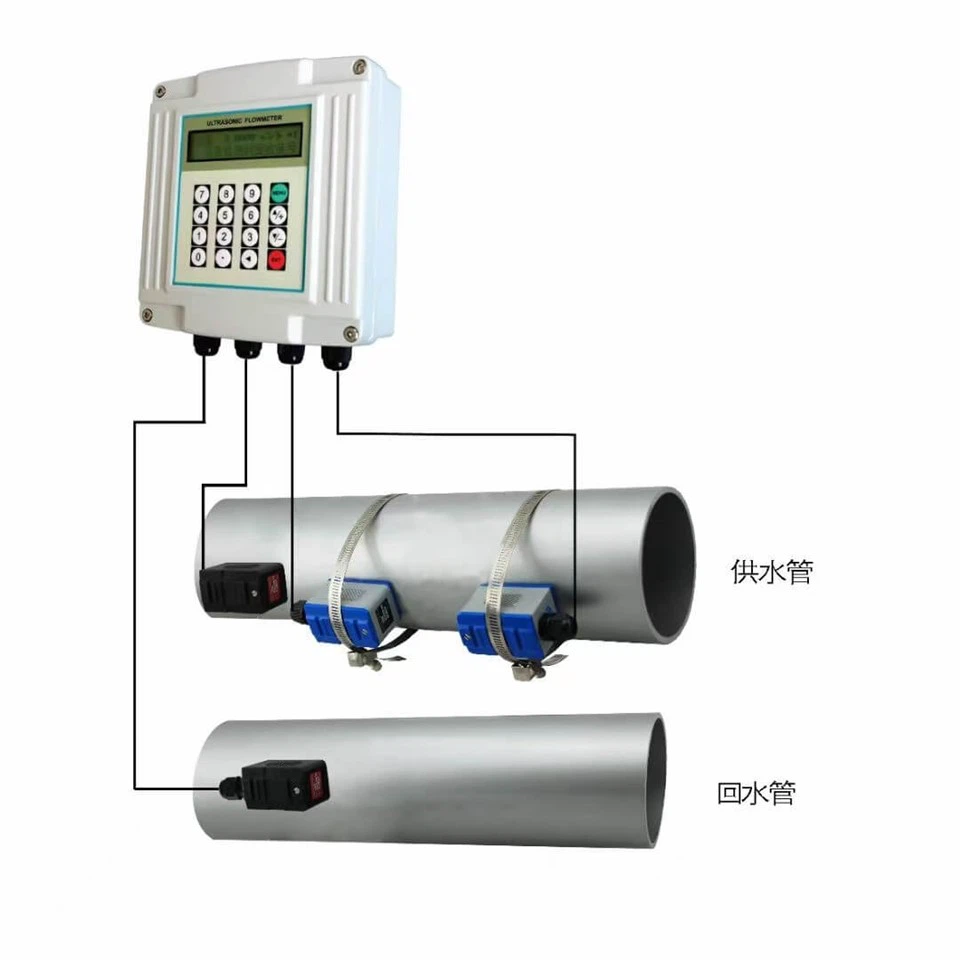

An ultrasonic heat meter is a flow meter that can measure liquid flow and heat. It consists of a host, a pair of flow sensors, and a pair of temperature sensors, which can measure the flow and temperature (heat) of the liquid in the pipeline. It has the advantages of high measurement accuracy, strong stability, sensor protection level IP68, and low procurement cost. Using external clamp-on sensors, installation does not require destroying the pipeline. It can be directly installed on the the outer wall of the pipeline, which makes installation easy and simple, and has low maintenance costs.
|
|
|
|
|
|
2. Applicable pipe materials and measured media range:
Stainless steel, carbon steel, cast iron, copper, PVC, aluminum, fiberglass, and other pipes.
Applicable to: water, seawater, sewage, wastewater, strong acids and alkalis, alcohol, beverages, beer, cooking oil, diesel, and other liquids.
3. Ultrasonic heat meter Pipe Selection Table：
|
Flow transducer |
Picture |
Model |
Measuring range |
Temperature |
|
Clamp-on |
|
TS-2 (small) |
DN25-100 |
-30 ~ 90℃ |
|
TM-1 (medium) |
DN50-700 |
|||
|
TL-1 (large) |
DN300-6000 |
|||
|
High temp. Clamp-on |
|
TS-2-HT (small) |
DN25-100 |
-30 ~ 160℃ |
|
TM-1-HT (medium) |
DN50-700 |
|||
|
TL-1-HT (large) |
DN300-6000 |
|||
|
Insertion |
|
TC-1 (standard) |
DN50-6000 |
-30 ~ 160℃ |
|
TC-2 (extended) |
||||
|
TP-1 (parallel) |
DN80-6000 |
|||
|
Inline |
|
Standard |
DN15-1000 |
-30 ~160℃ |
|
Temperature transducer |
Picture |
Model |
Measuring range |
Temperature |
Cut off water |
|
Clamp-on |
|
CT-1 |
DN50-6000 |
-40 ~ 160℃ |
No need |
|
Insertion |
|
TCT-1 |
DN50-6000 |
-40 ~ 160℃ |
Need |
|
Insertion under pressure |
|
PCT-1 |
DN50-6000 |
-40 ~ 160℃ |
No need |
|
Insertion small sizes |
|
SCT-1 |
< DN50 |
-40 ~ 160℃ |
Need |

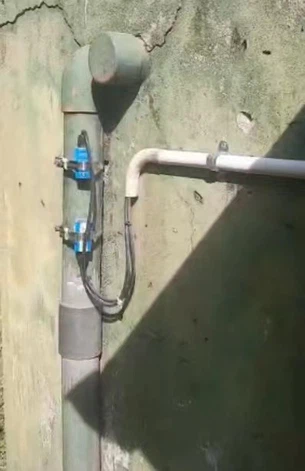

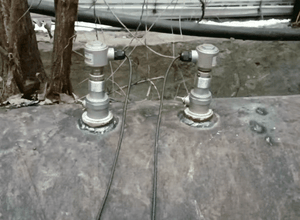

4. On-site installation pictures:
|
|
|
|
|
|
5. RFQ:
1. Q: Is the ultrasonic btu meter easy to install? If you buy it, do you know how to install it?
A: The installation is very simple. We will provide you with installation instructions and installation videos, and we have professional engineers to guide the installation.
2. Q: How do we pay? How long does it take for us to receive the goods after payment? How are the goods shipped?
A: We accept TT payments, credit card online payments, Western Union remittances, international RMB payments, PAYPAL payments, LC payments,
We have about 1000 pieces in stock. We will choose the most suitable shipping method according to the quantity you purchase. If you have a freight forwarder, we can also send the goods to your designated Chinese delivery address for free.
3. Are you a manufacturer or a trader?
We are a manufacturer with more than 20 years of R&D and manufacturing experience, with a professional technical team.
4. How is the after-sales service of the flow meter?
Our products will be calibrated one-to-one before leaving the factory to ensure that the factory qualification rate is 100%. If there is any quality problem, we can provide you with a new device for free.
