1. Introduction:

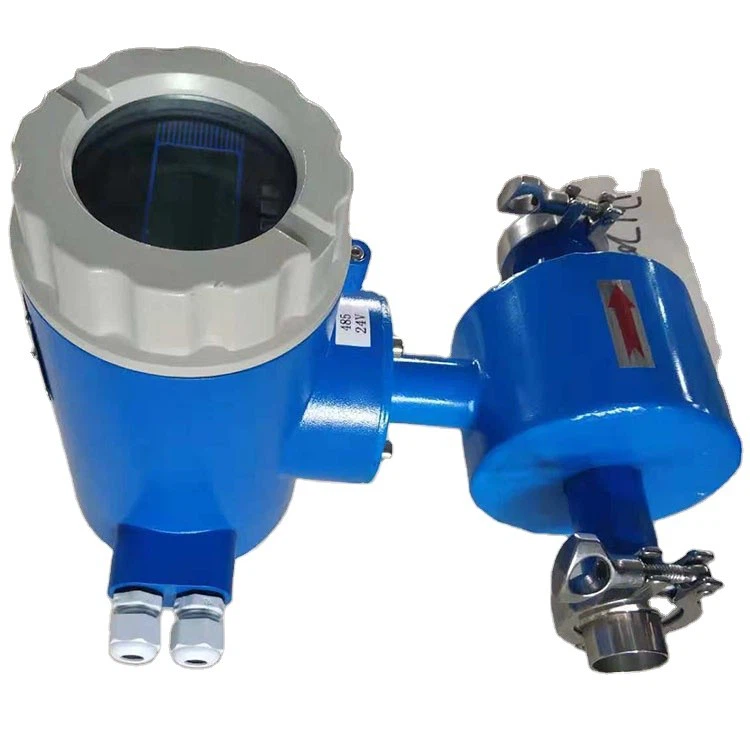

The battery operated electromagnetic flow meter displays instantaneous and cumulative flow. The battery provides 6-10 years of continuous operation. It can be configured with either in-line or insertion sensor types. Accuracy is 0.5%, with a maximum of 0.2%.
Outputs are categorized as follows:
※ No output, only LCD display, IP65 protection rating;
※With output function: LCD, pulse output, RS485 communication, HART protocol, IP68 protection rating, perfectly compatible with control systems for remote viewing and control;
2. Specification:
※ Pressure: 1.0 MPa, 1.6 MPa, 2.5 MPa, 4.0 MPa, 6.3 MPa, 10 MPa
※ Protection Rating: IP65, IP66, IP67, IP68
※ Electrodes: 316 stainless steel, Hastelloy, titanium, tantalum, platinum
※ Flowmeter Housing Material: Rubber, PTFE, polyurethane
※ Power Supply: Battery, 85VAC-245VAC, 24VDC, 12VDC
※ Connection Method: Flange, clamp, thread, ball valve
※ Sensor Material: 304 stainless steel, SS316, carbon steel
※ Cable Length: 10 meters x 2 (split type, length can be customized)
※ Communication Method: RS-485 protocol, pulse, HART
※ Accuracy: ±0.5%
※ Warranty Period: 24 months
※ Languages: English, Russian (customized), Chinese
3. Insertion And In-Line Flow Meters:
The insert-type battery operated electromagnetic flow meter has an accuracy of 1% and is suitable for pipe diameters as small as DN50 (2"). Compared with the pipe-type flow meter, it does not require pipe cutting during installation. Only a round hole is made at the top of the pipe, and a threaded ball valve or a flanged ball valve is welded to the pipe. For larger pipe diameters, such as DN200 and above, the purchase cost of the insert-type electromagnetic flow meter is lower than that of the pipe-type flow meter. The larger the pipe diameter, the greater the difference in purchase cost. The transportation cost is also lower.
4. Packaging:
The goods are shipped in plywood crates lined with expanded foam. The flow meter is also placed in a waterproof plastic bag. This protects the goods from moisture and impact during transport. Furthermore, it does not significantly increase the weight of the goods during transit.
5. RFQ:
Q1. Are you a manufacturer or a trading company?
A1: We are a manufacturer. Our factory is located in Kaifeng, China, and has been operating since 2002. We mainly produce and sell various industrial flow meters and other products. Welcome to visit us!
Q2. What products and services can you provide?
A2: We can provide one-stop flow meter services. Our products include various industrial flow meters, industrial ultrasonic water meters, differential pressure transmitters, pressure transmitters, and other instruments.
Q3. What are your packaging terms?
A3: Generally, we choose the most suitable and secure packaging based on the product's weight and the shipping method. For smaller pipes, especially for express delivery, we use foam-lined cardboard boxes. For larger pipe diameters, especially for sea freight, we use wooden crates.
Q4. What is your delivery time?
A4: We have a large inventory of raw materials and standard configuration equipment. For example, for standard types up to 50 pieces, the estimated production and verification time after receiving order confirmation is 2 working days. Non-standard types: Production time varies depending on quantity and specifications, normally requiring 5 working days. For more specific details, please consult our sales representative.
Q5. What is your minimum order quantity (MOQ)?
A5: Our MOQ is 1 piece.
Q6. How do you ensure good product quality?
A6: We have a complete quality control system; all our products undergo comprehensive inspection by our IQC and OQC departments before being shipped to customers.
Q7. How long is the validity period of your quotation?
A7: Our normal quotation validity period is 1 month. For longer requirements, please communicate with our sales representative for confirmation.
Q8. Can you accept OEM brands?
A8: Yes, we can accept OEM brands at no extra charge.
