1. Introduction：

The insertion type magnetic flow meter is divided into integrated and split types. The split type can be made to an IP68 protection level. It has the characteristics of simple installation, low maintenance cost, and high measurement accuracy.

For the laid pipelines, especially the old pipelines, the flow meter needs to be installed. Then the insertion flow meter is the best choice, because it does not need to cut the pipeline. Just open a small round hole directly above the pipeline to achieve installation and measurement. For pipelines with larger diameters, the budget purchase cost is much lower than that of pipeline flow meters. It occupies an important position in the flow measurement of water treatment, wastewater treatment, sewage treatment, and chemical processing industries.

2. Features and advantages:

The insertion type magnetic flow meter is easy to install. It does not require flow interception during installation and can be opened on site with power on. It has an absolute advantage in large pipeline flow measurement. The insertion-type flow meter is only related to the insertion depth, so the device has wide versatility and strong interchangeability. The manufacturing cost and installation cost are lower than the general pipe segment type magnetic flow meter. It is particularly suitable for flow measurement of large and medium pipeline diameters. The product can be installed online without stopping water under low-pressure or pressure conditions. In addition to the advantages of general pipeline electromagnetic flow meters, it also has the advantages of small size, light weight, easy installation and use, and low production and installation costs.

Integrated insertion electromagnetic flowmeter

Insertion type magnetic flow meter

3. Specifications and parameters：

Nominal Diameter	DN50(2")~ DN2200(88")
Accuracy	±1.0%,±1.5%
Electrode Material	SS316L; Hastelloy B; Hastelloy C; Titanium; Tantalum; Platinum
Lining Material	PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP
Process temperature	Neoprene：0℃～80℃ Polyurethane：-20℃～80℃, PTFE：-40℃～130℃, PFA：-20℃～150℃, PFA high temperature：-20℃～180℃,
Process temperature	Sensor: -30℃~60℃, Converter and integrated: -20℃~60℃,
Measuring Range	0.1m/s~12m/s
Output Signal	4~20mA / Frequency / Pulse
Communication	Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional)
Explosion Certification	NEPSI Ex db eb ia IIC T3…T6 Gb
Protection Grade	IP65/IP67 / IP68(optional)
Power supply	1.AC85V~AC265V 2.DC24V/DC12V 3. Battery power supply 4 .Solar power supply
Equipment Warranty	24 months

4. On-site installation pictures:

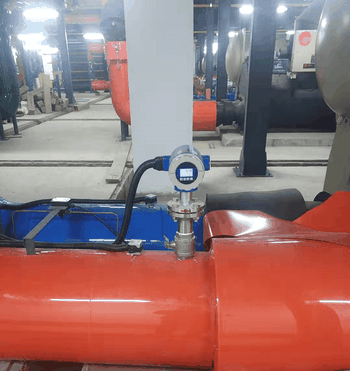

Insertion electromagnetic flowmeter can be installed in stainless steel pipes, carbon steel pipes, and PVC pipes etc.

Insertion type electromagnetic flowmeter

Plug-in electromagnetic flowmeter

4. RFQ:

Q1. Are you a manufacturer or a trader?

A1: We are a manufacturer, our factory is located in Kaifeng, China, and was started in 2002. We mainly produce and sell various industrial flow meters and other products. Welcome!

Q2. What products and services can you provide?

A2: We can provide one-stop flow meter services. Our products include various industrial flow meters, industrial ultrasonic water meters, differential pressure transmitters, pressure transmitters, and other instruments.

Q3. What are your packaging conditions?

A3: In general, we choose the most suitable and safe packaging according to the original weight of the product and the mode of transportation. If it is a small pipe equipment, the weight is relatively light, especially for express transportation, we will choose a carton with foam inside. If it is a large pipe diameter equipment, especially for sea transportation, we will choose wooden box packaging.

Q4. How about your delivery time?

A4: We have a large inventory of raw materials and standard configuration equipment, such as: within 50 pieces, standard type: the production and verification time after receiving the confirmed order is expected to be 2 working days. Non-standard type: Depending on the quantity and specifications, the production time is different. Normally, it takes 5 working days. You can communicate with our sales representative for more details.

Q5. What is your minimum order quantity?

A5: Our minimum order quantity is 1 piece.

Q6. How do you ensure good product quality?

A6: We have a complete quality control system; all our products are fully inspected by the IQC and OQC departments before being shipped to customers.

Q7. How long is your quotation valid?

A7: Our normal quotation is valid for 1 month. If you have more needs, you can communicate with our sales representative for confirmation.

Q8. Can you accept OEM brands?

A8: Yes, we can accept OEM brands without additional charges.

Q9. How long is your product warranty period?

A9: Our warranty time is 24 months. If there is a product quality problem, we can provide you with a brand new device with the same specifications.

Q10. Can you produce according to the samples?

A10: Yes, we can produce according to your samples or technical drawings.
