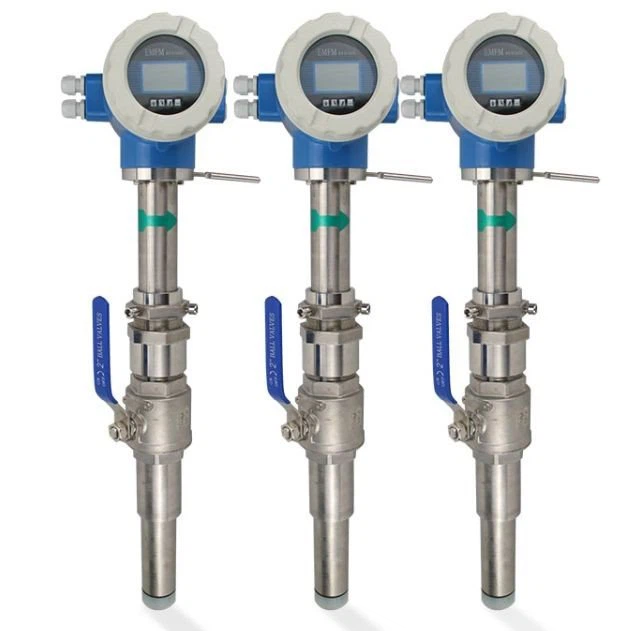

Insertion type electromagnetic flow meter
More EMF flow meter
Feature:
1. The JYLDE insert type electromagnetic flowmeter is more convenient to install in old pipelines and is more cost-effective for large pipelines.
2. It can measure various conductivity liquids, such as drinking water, mud, sewage, river water, sea water, etc.
3. JYLDE plug-in electromagnetic flowmeter is divided into integral type (compact type, integrated type) and split type (remote type).
4. Plug-in electromagnetic flowmeter can measure forward and reverse flow
5. Display language: Chinese or English
6. Measuring range rate: 1:100
7. Long-term EEPROM, save data after power off
8. Support MODBUS/4-20mA/pulse/HART communication protocol (optional)
9. 2*16LCD display screen, easy to operate
10. Power supply mode: 85-245VAC, 24VDC or battery power supply
11. Plug-in electromagnetic flowmeter, cost-effective, easy to install and easy to maintain.
| Display | reaches 8 element liquid crystal display, current clock to indicate flow data. Units( m3 or L) |
Structure | inserted style, compact type or separate type |
medium | liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2 |
Range | 0.05m/s~12m/s |
Accuracy | range between 0.1m/s~10m/s can be 0.5% |
DN | 6mm~2000 mm |
PN | PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional |
Output signal | 4~20mA or frequency |
Communication | RS485,support MODBUS protocol (not standard), support HART(option) |
Connection | DN6~DN2000 flange connection |
Connection standard | suits for all kinds of flange standard(eg:BS EN1092-1) |
Standard | accuracy apply to EN1434-1:2003 standard |
Protection grade | compact type for IP65,separately type for IP67or IP68(optional) |
Power | AC86~230V or DC24V(optional) |
Ambient temperature | 5~55C |
Ambient humidity | <85 % r.h (non condensation) |
Why choose us ?
1) We have more than 20 years of production experience
2) 100% QC inspection Before Shippment.
3) ISO,CE,SGstandard and factory price.
4)Professional technical team handles pre-sales, in-sales and after-sales
5)Factory direct production and sales, preferential prices
