Applicable Media for the Product：
The vortex air flow meter is a high-precision instrument capable of measuring a wide range of gases-including compressed air, nitrogen, and biogas-as well as non-corrosive liquids. By utilizing temperature and pressure compensation, it can measure superheated and saturated steam and display readings in mass units.
2. Product Specification Description：
| Item | Specification |
|---|---|
| Measured Medium | Compressed air, dry air, clean and non-corrosive gases, superheated steam, saturated steam |
| Nominal Size | DN15 ~ DN400 (½"‑16"); Insertion type DN100‑DN2000 |
| Connection Type | Flange, thread, sanitary clamp |
| Wetted Material | SS304 (standard), SS316L optional |
| Measuring Velocity Range (Air) | 2‑60 m/s |
| Turn‑down Ratio | 10:1 standard; up to 20:1 optional |
| Accuracy | ±1.0% |
| Repeatability | ±0.2 ~ ±0.3% reading |
| Nominal Process Pressure | PN16 / PN25 / PN40 (1.6/2.5/4.0 MPa), higher upon request |
| Medium Temperature | ‑40℃ ~ +250℃(standard),‑40℃ ~ +350℃(custom made), |
| Ambient Temperature | ‑30℃ ~ +70℃ |
| Power Supply | 24 VDC (2‑wire / 4‑wire); 3.6V lithium battery powered option |
| Output Signal | 4‑20 mA, pulse output; HART, RS485‑Modbus RTU optional |
| Display | Local LCD display (instant flow, totalizer, temp/pressure for multivariable type) |
| Protection Class | IP65 / IP67 |
| Explosion‑proof | Ex d IIC T4/T6, ATEX Zone1/2 optional |
| Straight Pipe Requirement | Upstream ≥10D, downstream ≥5D |
| Pressure Loss | Low pressure drop, ΔP ∝ ρV² |
| Transmitter Version | Compact integral type / remote separated type |

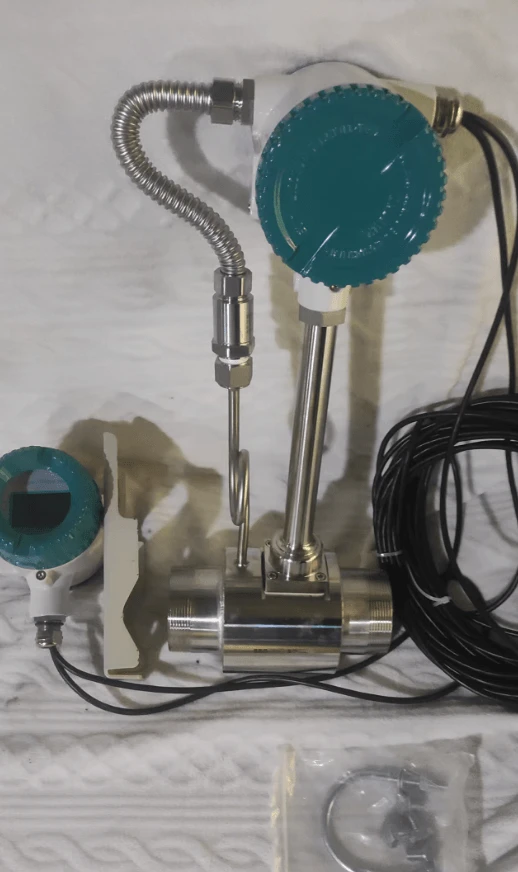

The split-type vortex flow meter with temperature and pressure compensation is installed. It is equipped with a pulse-type vortex air flow meter, pressure transmitter, temperature sensor, and flow totalizer, and can display the mass flow rate of steam.
4. RFQ:
Q1. What is your lead time?
A1: We maintain a large inventory of raw materials and standard components. For standard models (up to 50 units), the estimated time for production and testing after order confirmation is 2 working days. For non-standard models, production time varies based on quantity and specifications but typically takes 5 working days; please consult our sales representatives for specific details.
Q2. What is your minimum order quantity (MOQ)?
A2: Our minimum order quantity is 1 unit.
Q3. How do you ensure product quality?
A3: We have a comprehensive quality control system; all products undergo thorough inspections by our IQC and OQC departments before shipment.
Q4. How long is your quotation valid?
A4: Our standard quotations are valid for one month; please contact our sales representatives if you have specific requirements regarding validity.
Q5. Do you accept OEM branding?
A5: Yes, we accept OEM branding at no extra cost.
Q6. What is the warranty period for your products?
A6: We offer a 24-month warranty; in the event of quality issues, we will provide a brand-new replacement unit with identical specifications.
Q7. Can you manufacture products based on samples?
A7: Yes, we can manufacture products according to your samples or technical drawings.
