The electromagnetic flowmeter is divided into split type and integrated type, and the connection methods are flange connection, clamp connection, and threaded connection.

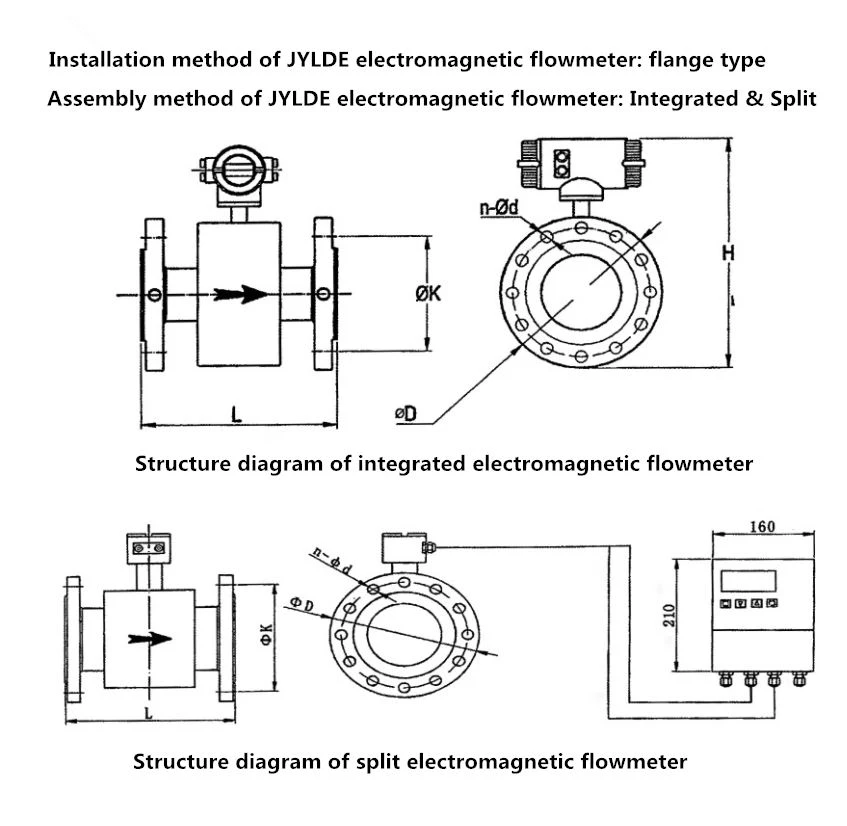

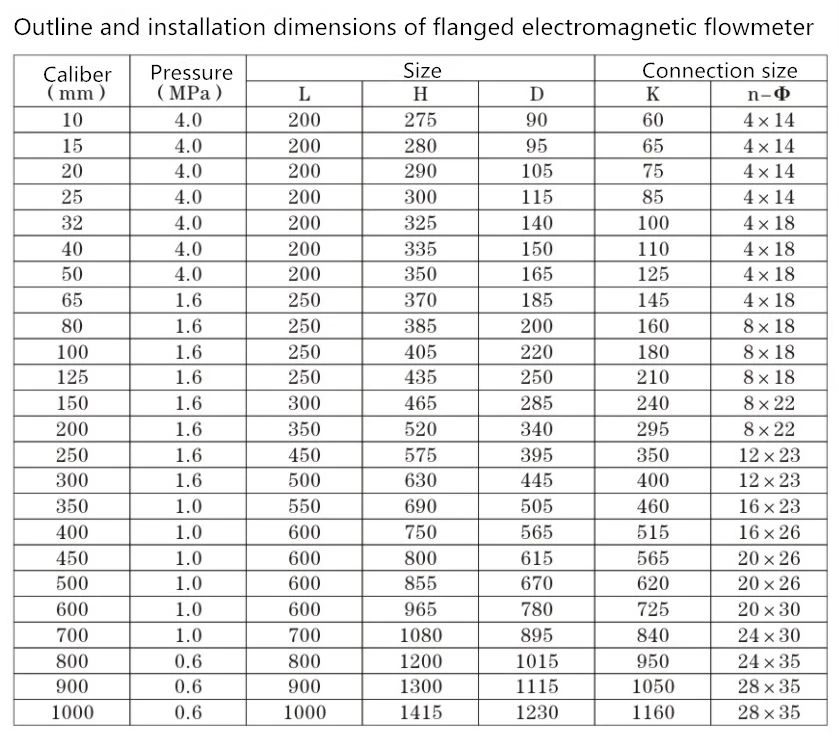

The following figure shows the dimensions of the electromagnetic flowmeter flange connection:
