1. Overview:
The inline turbine flow meter is capable of measuring all non-corrosive liquids and is the preferred instrument for measuring the volumetric flow of oils-such as diesel, edible oil, and gasoline. Sensor materials are available in SS304 or SS316, and power supply options include 24V DC, 12V DC, or battery power. Common pipeline connection methods include flange, threaded, and clamp connections. As an intelligent instrument, it features output capabilities such as 4–20mA and pulse signals, as well as Modbus communication, enabling seamless integration with control systems for remote monitoring, control, and management.
2. Classification:
Inline turbine flowmeters are available in two versions: a remote-display type and a pulse-output type (without display):

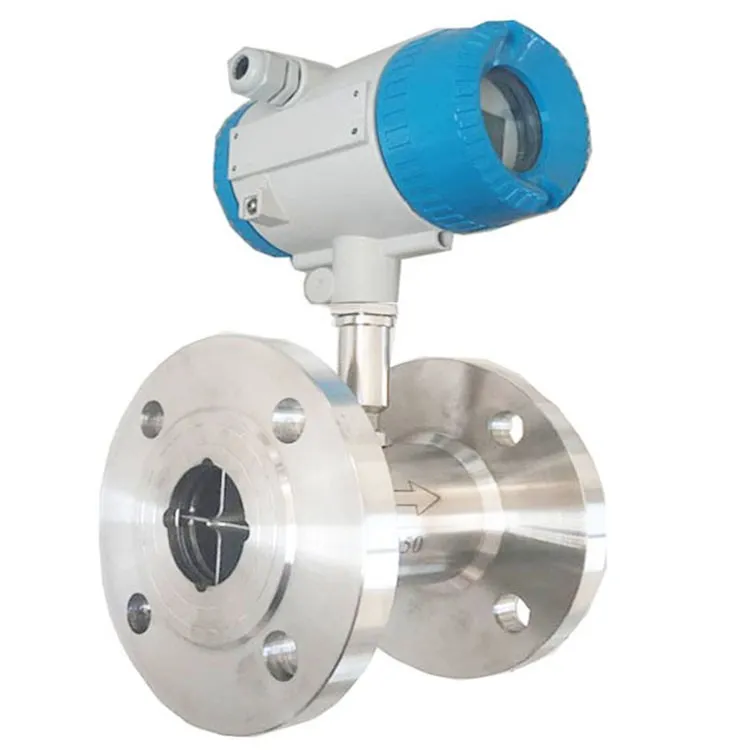

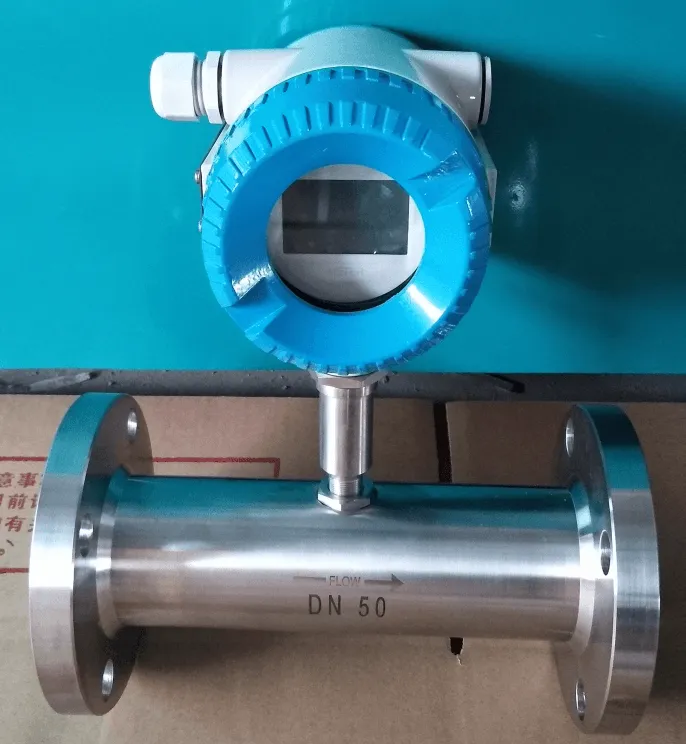

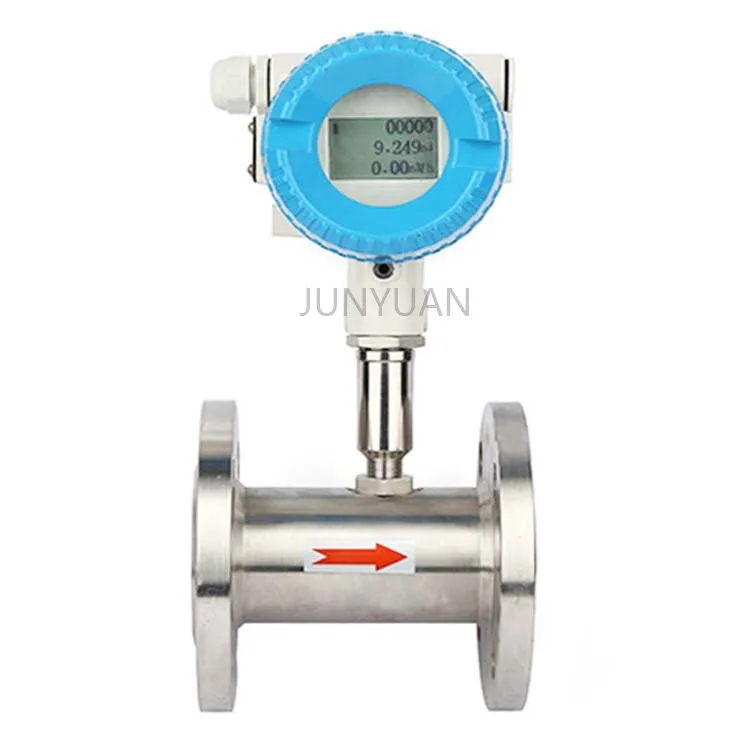

inline turbine flow meter with display
The integrated display version operates on 24 VDC or 12 VDC; it comes standard with a 4–20 mA output and offers optional Modbus communication, while the battery-powered version does not include output functionality.

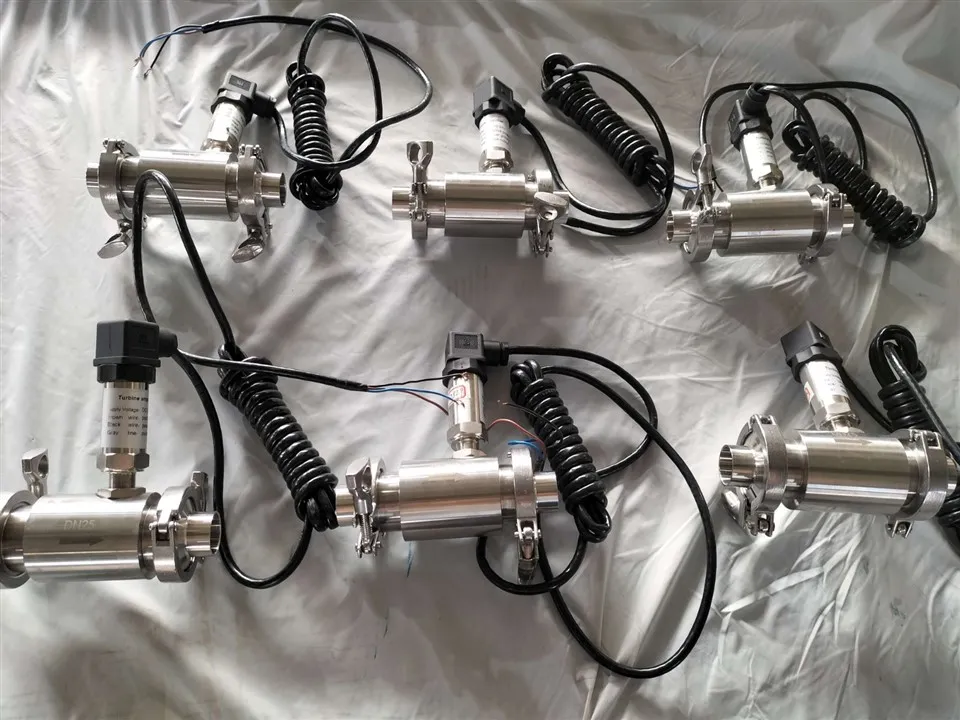

Liquid turbine flow meters with pulse output (no display)
Comes standard with pulse output and can be customized with 4–20 mA output for integration with flow totalizers, PLCs, or other control systems; this type of flow meter combines low cost with high accuracy.
3. Specification Description：
1. Pipe diameter: Pipe type: DN4~DN450,<br />
2. Type: integrated type, pulse type (can be equipped with a flowmeter and calculator, and can also be connected to control equipment)<br />
3. Output mode: pulse, 4~20Ma, RS485 communication<br />
4. Power supply: 24VDC, 12VDC, battery-powered, 220VAC (pulse type + flowmeter accumulator)<br />
5. Accuracy: 0.5%, 0.2%<br />
6. Medium temperature: -20℃~180℃<br />
7. Valve body material: SS304, SS316L<br />
8. Connection form: clamp, thread, flange connection (standard selection: DIN, ANSI, JIS)<br />
9. Measured medium: liquid
4. Sensor Casting Workshop:
5. Factory flow calibration video:
6. RFQ:
Q1. Are you a manufacturer or a trader?
A1: We are a manufacturer based in Kaifeng, China, established in 2002. We specialize in the production and sales of various industrial flow meters and related products. You are welcome to visit us!
Q2. What products and services do you offer?
A2: We provide one-stop flow meter services, offering a range of products including industrial flow meters, industrial ultrasonic water meters, differential pressure transmitters, pressure transmitters, and other instrumentation.
Q3. What are your packaging specifications?
A3: We select the most suitable and secure packaging based on the product's weight and the shipping method. For lightweight equipment (especially for small-diameter pipes shipped via courier), we use cartons with foam padding. For large-diameter equipment (especially for sea freight), we use wooden crates.
Q4. What is your delivery time?
A4: We maintain a large inventory of raw materials and standard-configuration equipment. For standard models (orders of up to 50 units), production and calibration take approximately 2 working days after order confirmation. For non-standard models, production time varies based on quantity and specifications but typically takes 5 working days; please consult our sales representatives for specific details.
Q5. What is your minimum order quantity (MOQ)?
A5: Our minimum order quantity is 1 unit.
Q6. How do you ensure product quality?
A6: We have a comprehensive quality control system; all products undergo thorough inspections by our IQC (Incoming Quality Control) and OQC (Outgoing Quality Control) departments before shipment to customers.
