1. Applications:
Mag meters for water designed for water measurement are widely utilized for measuring the volumetric flow of drinking water, irrigation water, river water, and seawater within pipelines. Furthermore-particularly when measuring the volumetric flow of mixed fluids such as pulp, slurries, sewage, and wastewater-they constitute the only viable choice of instrumentation.
Classified by type
Integrated, Remote, and Insert-type.

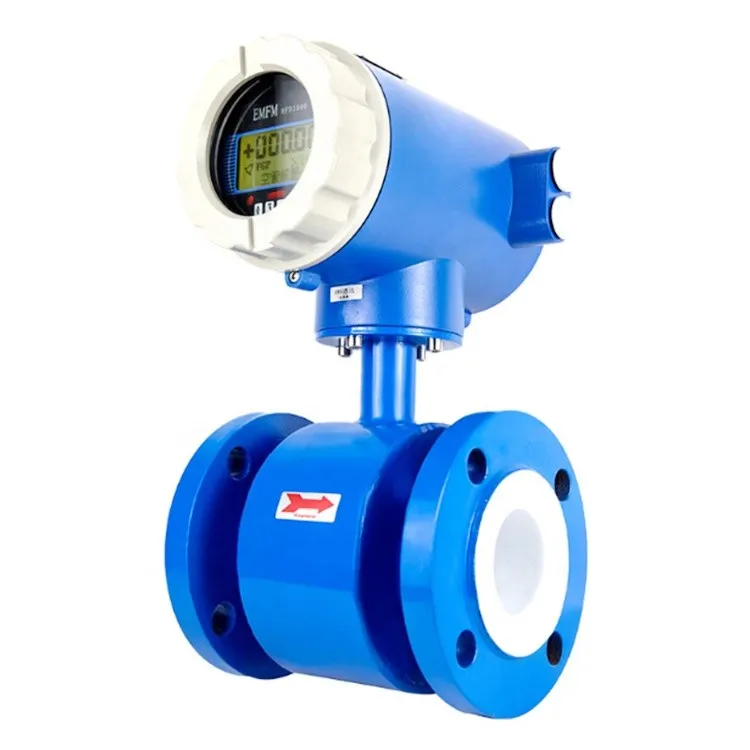

2. Core Components:
The components of the water mag meters for water include:
1. Stainless steel measuring tube;
2. Copper excitation coils;
3. Various electrode and liner materials, selected to match the specific properties of the fluid being measured;
4. Sensor housing options available in materials such as carbon steel, SS304, SS316, etc.;
5. Signal Converter: Features include pulse output, 4–20 mA output, Modbus communication, HART protocol support, and more. Multiple power supply options are available-including 220 VAC, 24 VDC, battery power, and solar power-along with an LCD display. Selectable interface languages include Chinese, English, Russian, etc.
3. Specifications:
The magnetic flowmeter is a custom-configured instrument. It requires the determination of the measurement pipe diameter, as well as the properties of the medium being measured, in order to select the most suitable electrode material, liner material, housing material, power supply method, connection type, pressure rating, fluid temperature, and other parameters.
|
Nominal Diameter |
DN3mm~ DN2200(88") |
|
Accuracy |
±1.0%,±1.5% |
|
Electrode Material |
SS316L; Hastelloy B; Hastelloy C; Titanium; Tantalum; Platinum |
|
Lining Material |
PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP |
|
Process temperature |
Neoprene：0℃～80℃ Polyurethane：-20℃～80℃, PTFE：-40℃～130℃, PFA：-20℃～150℃, PFA high temperature：-20℃～180℃, |
|
Process temperature |
Sensor: -30℃~60℃, Converter and integrated: -20℃~60℃, |
|
Measuring Range |
0.1m/s~12m/s |
|
Output Signal |
4~20mA / Frequency / Pulse |
|
Communication |
Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional) |
|
Explosion Certification |
NEPSI Ex db eb ia IIC T3…T6 Gb |
|
Protection Grade |
IP65/IP67 / IP68(optional) |
|
Power supply |
1.AC85V~AC265V 2.DC24V/DC12V 3. Battery power supply 4. Solar power supply |
|
Equipment Warranty |
24 months |
4. Factory Shipment Video：
We are a manufacturer, and we maintain a large inventory of mag meters for water of various pipe diameters and specifications. This significantly reduces production time; for normal orders under 100 pieces, the estimated production and calibration time is 5 working days.
5. RFQ:
Q1. Are you a manufacturer or a trading company?
A1: We are a manufacturer. Our factory is located in Kaifeng, China, and has been in operation since 2002. We primarily manufacture and sell a wide range of industrial flow meters and related products. You are welcome to visit us!
Q2. What products and services can you provide?
A2: We offer comprehensive, one-stop services for flow measurement solutions. Our product range includes the sale of various industrial flow meters, industrial ultrasonic water meters, differential pressure transmitters, pressure transmitters, and other instrumentation.
Q3. What are your packaging terms?
A3: Generally, we select the most suitable and secure packaging based on the product's weight and the chosen shipping method. For equipment involving small pipe diameters-which tends to be lighter-especially when shipped via express courier, we utilize carton packaging with internal foam padding. For equipment with large pipe diameters-particularly when shipped via sea freight-we opt for wooden crate packaging.
Q4. What is your delivery lead time?
A4: We maintain a substantial inventory of raw materials and standard-configuration equipment. For standard models (up to 50 units), the estimated time required for production and calibration after order confirmation is 2 business days. For non-standard models, production times vary depending on the specific quantity and specifications; typically, this requires 5 business days. For more specific details, please consult with our sales representatives.
Q5. What is your Minimum Order Quantity (MOQ)?
A5: Our minimum order quantity is 1 unit.
Q6. How do you ensure high product quality?
A6: We have established a comprehensive quality control system. Prior to shipment to our customers, all our products undergo thorough inspection by our IQC (Incoming Quality Control) and OQC (Outgoing Quality Control) departments.
