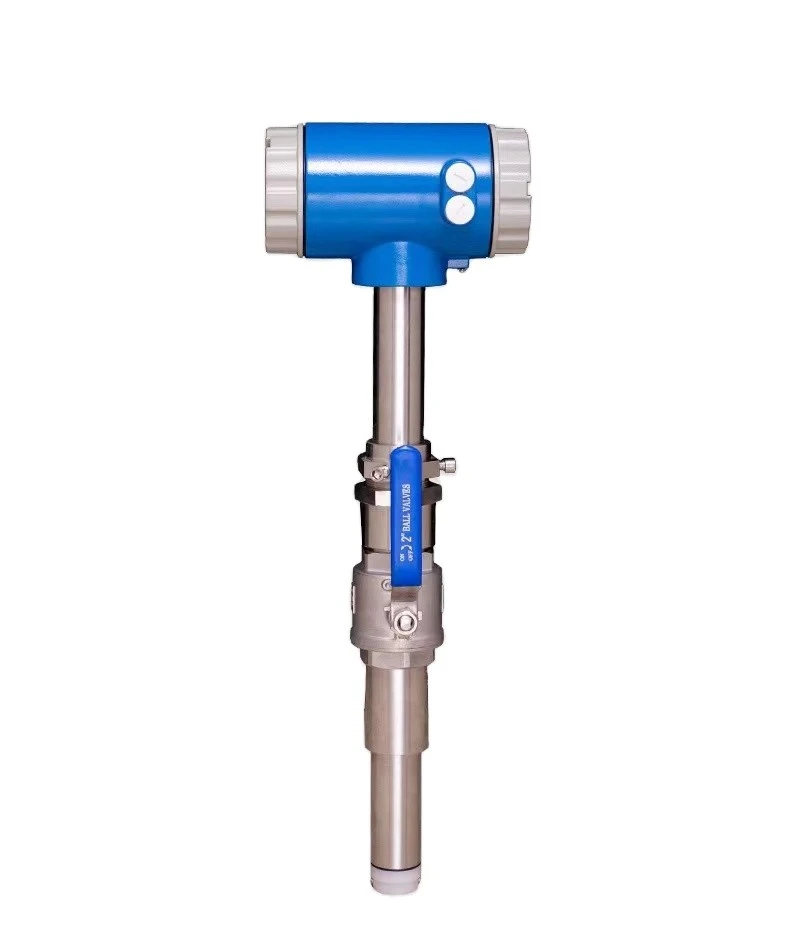

Flow meter insertion type are primarily suitable for flow measurement in large-diameter pipelines. They do not require cutting the pipe; instead, a circular hole is simply drilled into the top of the pipe to allow the sensor probe to be inserted. The insertion depth is typically half the pipe diameter, or one-quarter of the diameter for larger pipes. This setup enables the measurement of both volumetric and instantaneous flow rates, achieving an accuracy of up to 1%.
Components of an flow meter insertion type
01
LCD display: display Cumulative flow, Instantaneous flow, Forward flow, Reverse flow2.Units: L/h, L/m, L/s, m3/h, m3/m, m3/s, GPM3.Language: English, Italian, Spanish, Russian, Japanese, Korean, etc
02
SS304 Stainless Steel material.
Flange connection, simple installation.
03
Screw ball valve connection for easy installation and removal.
Easy to overhaul.
04
Multiple medium measurements.
It can resist acid, alkali, and salt corrosion.
2. Flow meter insertion type Specification Table:
| Item | Specification |
|---|---|
| Applicable Pipe Size | DN100‑DN3000 mm |
| Measured Fluid | Conductive liquid, conductivity ≥5 μS/cm |
| Velocity Range | 0.1‑10 m/s, turndown ratio 1:20 |
| Accuracy | ±1.0% FS ,±1.5% FS |
| Nominal Pressure | 1.6 MPa (2.5 MPa / 4.0 MPa optional) |
| Medium Temperature | -20～+80℃ (high‑temp version up to 120℃) |
| Electrode Material | 316L(standard), Hastelloy C, Titanium, Tantalum(optional) |
| Probe Shaft | 304 / 316L SS; probe insulation PEEK / Polyurethane |
| Process Connection | PN16 ball‑valve for hot‑tap; 2" thread / DN50 flange optional |
| Output | 4‑20 mA, pulse; RS485‑Modbus, HART(optional) |
| Power Supply | 220 VAC or 24 VDC |
| Protection Class | Transmitter IP65; Sensor IP68 optional |
| Construction | Integral / Remote type optional |
| Straight Pipe Requirement | Upstream ≥5DN, downstream ≥3DN |
| Display & Function | Back‑light LCD, instantaneous & total flow, bidirectional flow, self‑diagnosis |
3. On-site installation photos:
Regarding flow meter insertion type, there are separate and integrated types. Their on-site installation is very convenient and simple.
4. RFQ:
Q1. Are you a manufacturer or a trader?
A1: We are a manufacturer based in Kaifeng, China, established in 2002. We specialize in the production and sales of various industrial flow meters and related instruments. You are welcome to visit us!
Q2. What products and services do you offer?
A2: We provide comprehensive flow meter solutions. Our product range includes various industrial flow meters, industrial ultrasonic water meters, differential pressure transmitters, pressure transmitters, and other instrumentation.
Q3. What are your packaging specifications?
A3: We select the most suitable and secure packaging based on the product's weight and the shipping method. For lightweight equipment (especially for small pipe diameters or express shipping), we use cartons with foam padding. For heavy equipment or large pipe diameters (especially for sea freight), we use wooden crates.
Q4. What is your delivery time?
A4: We maintain a large inventory of raw materials and standard-configuration equipment. For standard models (orders of 50 units or fewer), production and calibration take approximately 2 working days after order confirmation. For non-standard models, production time varies based on quantity and specifications but typically takes 5 working days; please consult our sales representatives for specific details.
Q5. What is your minimum order quantity (MOQ)?
A5: Our minimum order quantity is 1 unit.
Q6. How do you ensure product quality?
A6: We have a comprehensive quality control system; all products undergo thorough inspections by our IQC (Incoming Quality Control) and OQC (Outgoing Quality Control) departments before shipment.
