1.Features and advantages:
The sensor pipe of the electromagnetic meter has no damping components inside, which will not reduce the flow rate of the liquid in the pipe. The internal parts that contact the liquid are the lining and electrodes. The most suitable lining material and electrode material can be selected according to the characteristics of the measured liquid. It can measure strong acids and alkalis, media containing impurities, sanitary liquids, sewage, wastewater, pulp, mud and other conductive liquids. The device has a variety of output ports (such as: Modbus, current output, pulse output, Hart), which can be connected to the control system for remote detection and management.
Strong stability, high accuracy, low maintenance cost, and adaptability to various installation environments. It can also measure flow, temperature and pressure at the same time. It can also measure the flow of liquids that are not full of pipes. It is the preferred instrument for measuring the cumulative flow and instantaneous flow of conductive liquids.
2.Commonly used lining materials
Choose the best fit for liquid lining.
Rubber lining
* Scope of application: liquid temperature 1.0℃～80℃, not resistant to corrosive media such as strong acid and alkali, can measure weakly corrosive liquids such as sewage, mud, ore slurry, irrigation water, etc.

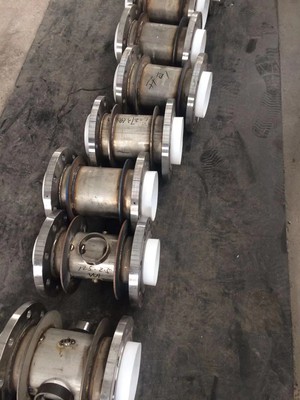

Polytetrafluoroethylene (PTFE)
* Scope of application: -25 degrees to 140 degrees, strong corrosive substances such as concentrated acids and alkalis, and sanitary media such as drinking water, milk, beer, and beverages.
Fluorinated Ethylene Propylene (F46)
*Applicable range: -25 degrees -100 degrees of non-strong wear media, sanitary media.
Ceramic lined electromagnetic meter
*Scope of application: With excellent corrosion resistance and wear resistance, suitable for various harsh environments
3.Some product pictures

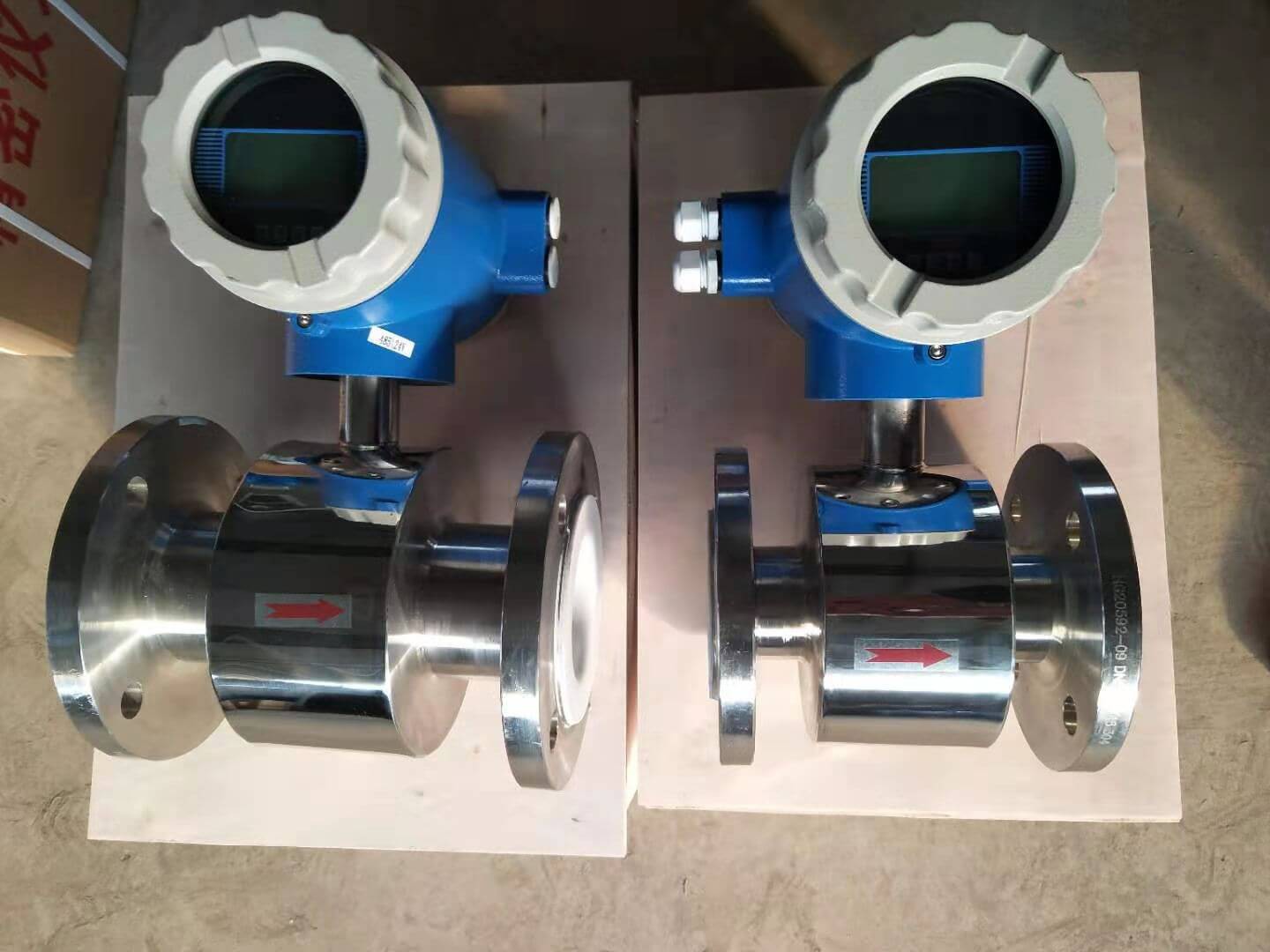

High precision economical electromagnetic meter pictures
1
>>
2
>>
3
>>
4
>>
5
>>
6
All electromagnetic meters shipped by Henan Junyuan Automation Equipment Co., Ltd. are tested and calibrated twice before leaving the factory to ensure that all meters have a 100% qualified rate before leaving the factory.
Our factory has professional calibration equipment and professional calibration engineers. All meters are calibrated one-to-one by professional calibration engineers using the 5-point calibration method before leaving the factory to ensure that the flow meter accuracy can reach within 0.5% and up to 0.2%.
5.Calibration Video:
