Advantage :
1. The measurement is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity.
2. There are no obstructing flow parts in the measuring pipe, no pressure loss, and lower requirements for straight pipe sections
3. The series of engineering diameters are DN3-DN3000. There are multiple choices for sensor lining and electrode materials
4. The flowmeter can be a two-way measurement system, with three totalizers built in, forward total, reverse total and difference total; it can display forward and reverse flow, and has a variety of outputs: current, pulse, digital Communication, Hart
5. Explosion-proof instruments can be used in corresponding explosion-proof places
Application:
Water treatment
Chemical industry
Beverage factory
Medicine
Agricultural irrigation

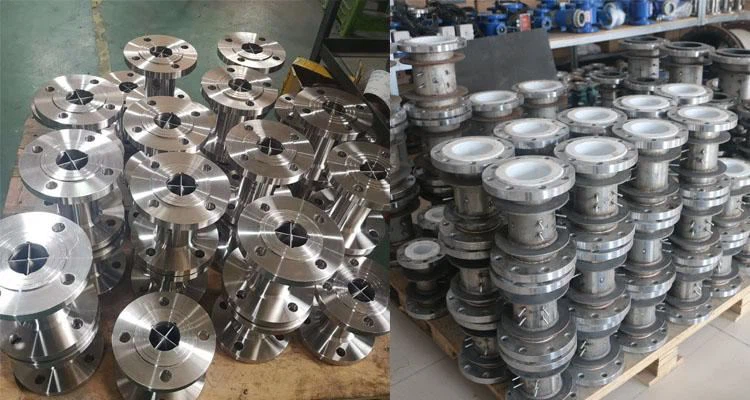

Types of electromagnetic flowmeters
Parameter

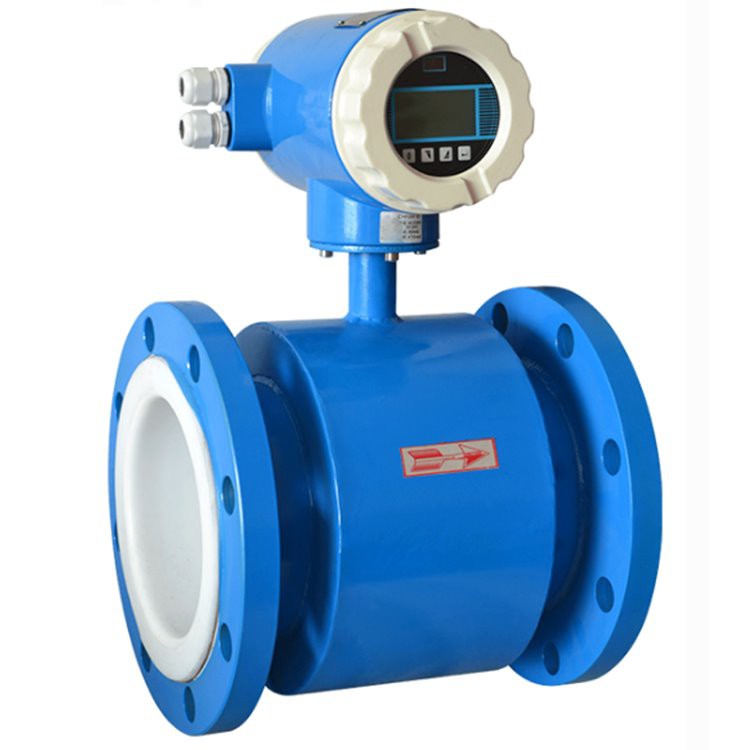

Product name | Slurry flow meter |
Max flow rate | 15m/s |
Accuracy | ±0.5% ,±0.2% |
Fluid conductivity | >5μS/cm |
Nominal pressure | 0.6Mpa,1.0Mpa,1.6Mpa,4.0Mpa(customized for high |
Caliber | DN6-DN3000 |
Liner material | PTFE,PFA,F46,Neoprene ,Polyurethane |
Electrode | SUS316, Hastelloy B, Hastelloy C,Titanium, Tantalum, Platinum-iridium |
Ambient humidity | 5-100%RH(Relative humidity) |
Ambient temperature | -25℃ to +60℃ |
Measuring range | 1500:1,flow rate <15m/s |

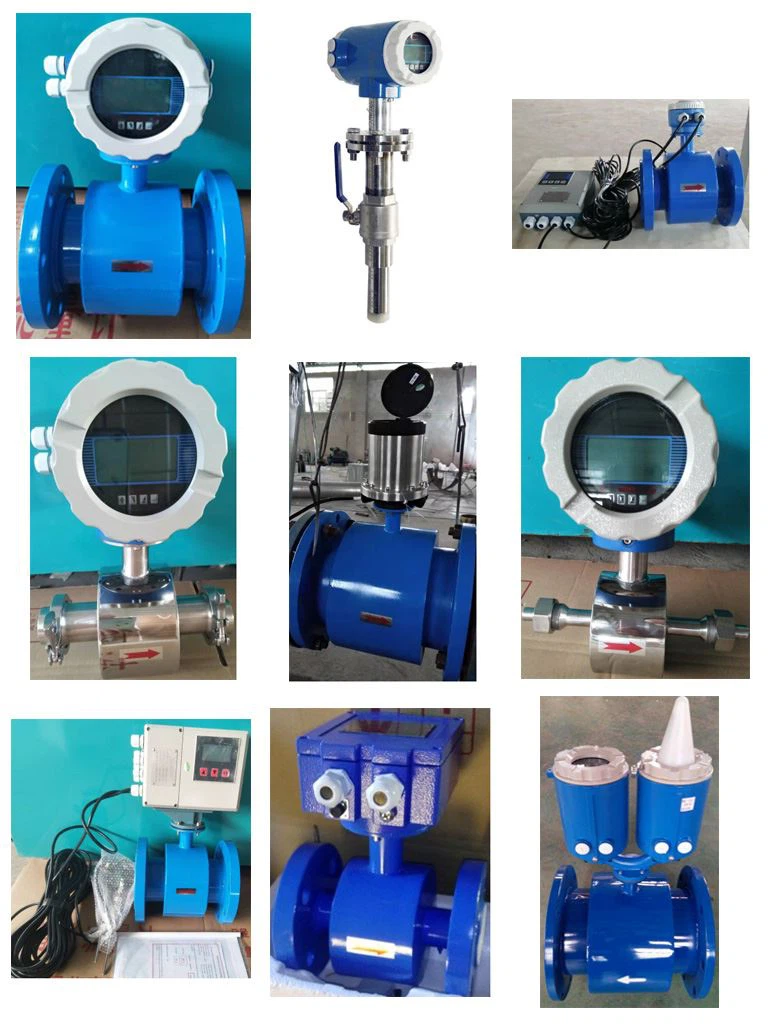

Structure type | Integrate type,Remote type ,Insertion type ,ex-proof type |
Protection level | IP65(standard ) ,IP68(Optional ) |
Ex-proof Mark | ATEX |
Power supply | 24V ,220V ,3.6V battery |
Signal output | 4-20Ma , pulse |
Communication protocol | RS485(Modbus ),Hart |
Product standard | JB/T9248-1999 electromagnetic flowmeter |
Selection of electrodes material
| Electrodes material | Corrosion resistance |
SS316 | Applicable to industrial/municipal drinking water, wastewater and low corrosive mediums. |
Hastelloy B | It has good corrosion resistance to all concentrations of hydrochloric acid below the boiling point, and is also resistant to oxidizing acids, alkalis, and non-oxidizing salt solutions such as sulfuric acid, phosphoric acid, and organic acids. |
Hastelloy C | It is resistant to oxidizing acids, such as nitric acid, mixed acids, and also resistant to oxidizing salts. If the hypochlorite solution is higher than normal temperature, seawater will corrode. |
Titanium | It can withstand the corrosion of sea water, various chlorides and hypochlorites, oxidizing acids, organic acids, and alkalis, but is not resistant to the corrosion of relatively pure reducing acids. However, if the acid contains an oxidizing agent, the corrosion is greatly reduced. |
Tantalum | It has excellent corrosion resistance and is very similar to glass. Except for hydrofluoric acid, fuming sulfuric acid and alkali, it is resistant to corrosion by almost all chemical media |
Flow Range
Flow rate----flow comparison table | |||||||
| 0.01 | 1 | 2 | 3 | 4 | 5 | 15 |
15 | 0.0064 | 0.6362 | 1.2723 | 1.9085 | 2.5447 | 3.1809 | 9.5426 |
20 | 0.0113 | 1.1310 | 2.2619 | 3.3929 | 4.5239 | 5.6549 | 16.9646 |
25 | 0.0177 | 1.7671 | 3.5343 | 5.3014 | 7.0686 | 8.8357 | 26.5072 |
40 | 0.0452 | 4.5239 | 9.0478 | 13.5717 | 18.0956 | 22.6195 | 67.8584 |
50 | 0.0707 | 7.0686 | 14.1372 | 21.2058 | 28.2743 | 35.3429 | 106.0288 |
65 | 0.1195 | 11.9459 | 23.8919 | 35.8377 | 47.7836 | 59.7295 | 179.1886 |
80 | 0.1810 | 18.0956 | 36.1911 | 54.2867 | 72.3823 | 90.4779 | 271.4336 |
100 | 0.2827 | 28.2743 | 56.5487 | 84.8230 | 113.0973 | 141.3717 | 424.1150 |
150 | 0.6362 | 63.6173 | 127.2345 | 190.8518 | 254.4690 | 318.0863 | 954.2588 |
200 | 1.1310 | 113.0973 | 226.1947 | 339.2920 | 452.3893 | 565.4846 | 1696.4600 |
300 | 2.5447 | 254.4690 | 508.9380 | 763.4070 | 1017.8760 | 1272.3450 | 3817.0351 |
350 | 3.4636 | 346.3606 | 692.7212 | 1039.0818 | 1385.4424 | 1731.8030 | 5195.4089 |
400 | 4.5239 | 452.3893 | 904.7787 | 1357.1680 | 1809.5574 | 2261.9467 | 6785.8401 |
450 | 5.7256 | 572.5553 | 1145.1105 | 1717.6658 | 2290.2210 | 2862.7763 | 8588.3289 |
500 | 7.0686 | 706.8583 | 1413.7167 | 2120.5750 | 2827.4334 | 3534.2917 | 10602.8752 |
600 | 10.1788 | 1017.8760 | 2035.7520 | 3053.6281 | 4071.5041 | 5089.3801 | 15268.1403 |
700 | 13.8544 | 1385.4424 | 2770.8847 | 4156.3271 | 5541.7694 | 6927.2118 | 20781.6354 |
800 | 18.0956 | 1809.5574 | 3619.1147 | 5428.6721 | 7238.2295 | 9047.7868 | 27143.3605 |
900 | 22.9022 | 2290.2210 | 4580.4421 | 6870.6631 | 9160.8842 | 11451.1050 | 34353.3157 |
1000 | 28.2743 | 2827.4334 | 5654.8668 | 8482.3002 | 11309.7336 | 14137.1669 | 42411.5008 |
1200 | 40.7150 | 4071.5041 | 8143.0082 | 12214.5122 | 16286.0163 | 20357.5204 | 61072.5612 |
1400 | 55.4177 | 5541.7694 | 11083.5389 | 16625.3083 | 22167.0778 | 27708.8472 | 83126.5416 |
1600 | 72.3823 | 7238.2295 | 14476.4589 | 21714.6884 | 28952.9179 | 36191.1474 | 108573.4421 |
1800 | 91.6088 | 9160.8842 | 18321.7684 | 27482.6525 | 36643.5367 | 45804.4209 | 137413.2627 |
2000 | 113.0973 | 11309.7336 | 22619.4671 | 33929.2007 | 45238.9342 | 56548.6678 | 169646.0033 |
